Espaços para Laboratórios
O PCT “Brigantia-Ecopark” está preparado para acolher laboratórios na atividade principal das áreas estratégicas.
O edifício principal possui 23 espaços modulares para laboratórios com quatro principais tipologias:
- 10 espaços com 56 m
- 4 salas com 40 m
- 8 espaços com 50 m
- 1 espaço desenvolvidos em altura com 110 m
Distribuídos pelo nível 1 e nível 2, estes espaços são modulares e podem ser adaptados às necessidades das empresas e do PCT.
Equipamentos
GENERAL CLUSTER
3D RAPID PROTOTYPING
Rapid Prototyping is able to provide fast turnaround 3D printing and sample prototyping services for internal and external tech base companies. 3D printing or rapid prototyping will facilitate the production of new or modified products directly from 3D designs. This drastically changes conventional business models by extending the boundary of design and production to quickly respond to the dynamic change in customer demands.
Objet Eden professional 3D printers work with 15 materials to deliver outstanding precision and productivity, including: Transparent materials for producing clear models with great dimensional stability and surface smoothness, rigid opaque materials (Vero family) in a variety of colors including white, gray, blue and black, Simulated Polypropylene materials with toughness and durability to create smooth prototypes with living hinges, flexible closures and snap-fit parts, Rubber-like
materials (Tango family) suitable for a range of applications requiring non-slip or soft surfaces, High Temperature (RGD525) for advanced functional testing, hot air and water flow, and static applications (models with thermal resistance and dimensional stability).
This model (Stratasys Eden260V) is the first system to offer PolyJet technology with soluble support. Automated support removal reduces hands-on labour and reaches internal voids that water-jetting can miss, making it ideal for models with delicate features or hard-to-reach cavities.
The Objet Eden260VS builds parts directly from digital files two times faster than other lowest-priced PolyJet solution. Plus, it takes workflow automation a step further with soluble support material that dissolves easily from tiny cavities, overhangs and crevasses.
MODEL
Object EDEN260VS – STRATASYS GENERAL CLUSTER
NET BUILD SIZE
255 × 252 × 200 mm
LAYER THICKNESS
Horizontal build layers as fine as 16 microns
BUILD RESOLUTION
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
ACCURACY/WORKSTATION COMPATIBILITY
20-85 microns for features below 50 mm; up to 200 microns for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)
Windows 7 32/64-bit
NETWORK CONNECTIVITY
LAN – TCP/IP
SIZE AND WEIGHT
870 × 735 × 1200 mm; 264 kg
JETTING HEADS
SHR (Single Head Replacement) 8 units
POWER REQUIREMENTS
110-240 VAC 50/60 Hz; 1.5 KW single phase
OPERATIONAL ENVIRO. TEMPERATURE
18 C-25 C
OPERATIONAL ENVIRO. RELATIVE HUMIDITY
30-70%
ADVANCED MONITORING AND CONTROL FOR LABORATORIES
LABORIAL advanLab® is a centralized automation system for laboratories that integrates the core needs of monitoring and control existing in these areas: operating parameters, safety, energy, air quality control and maintenance. A part of the system consists in a software which allows users monitoring and control of different variables/parameters of the equipments, laboratory rooms, floors and the whole building in real time, and intuitively. This software allows setting different limits of alarms for each variable, establishing how to alert the user in the case of alarm (SMS, email, visual or audible), view parameters’ graphics and statistic data, and export data in many formats (.csv, .pdf, .doc, .xls). The other part of the system, which allows data acquisition and actuation, consists in a network of transmitters with wireless communication and powered by battery.
Sensors should be applied in 3 shared laboratories using for each laboratory: 2 temperature probes, 1 humidity sensor, 1 gas detector sensors (CO2), 1 air quality
sensor and 1 Sensor detection of water leaks, 3 sensors power consumption control by existing electrical equipment.
UNIVERSAL TESTING MACHINE
The universal machine INSTRON 3382 floor model, testing system is suited for tension, compression, peel, flex, and other applications with maximum testing load up to 100 kN.
The universal machine INSTRON 3382 has: Automatic recognition and calibration of load and strain transducers, Preloaded ballscrews, precision guidance columns, and a symmetrical drive, Extensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more; Self-diagnostics expedite troubleshooting and minimize downtime.
The universal machine INSTRON 3382 has force measurement accuracy: meets or exceeds the following standards: ASTM E-4, BS 1610, DIN 51221, ISO 7500/1, EN 10002-2, JIS B7721, JIS B773 e AFNOR A03-501.
The universal machine INSTRON 3382 has strain measurement accuracy: meets or exceeds the following standards: ASTM E-83, BS 3846, ISO 9513 and EN 10002-4.
The universal machine INSTRON 3382 pickup data with sampling rate of 40KHz and transfers to computer at 500Hz with 4 channels synchronously.
The universal machine INSTRON 3382 has grips for tensile and compressive testing. Grips for rectangular samples up to 12 mm thickness, 50mm x 0-6mm, 50 X 6-12mm. Grips for circular samples up to 7 – 12,7mm, and 12,7 – 19mm. Plates for compressive testing with diameter up to 150 mm. Accessory for three and four bending points, using roller bearing supports with 10 mm.
The universal machine INSTRON 3382 has also a computer program (BLUEHILL LE) to help analyse the experimental results.
MODEL
INSTRON 3382
LOAD CAPACITY
100 kN
MAXIMUM SPEED
500 mm/min
MINIMUM SPEED
0.005 mm/min
MAXIMUM FORCE AT FULL SPEED
50 kN
MAXIMUM SPEED AT FULL LOAD
250 mm/min
RETURN SPEED
600 mm/min
TOTAL CROSSHEAD TRAVEL
1235 mm
TOTAL VERTICAL TEST SPACE
1323 mm
SPACE BETWEEN COLUMNS
575 mm
HEIGHT
2393 mm
WIDTH
1124 mm
DEPTH
779 mm
WEIGHT WITH TYPICAL LOAD CELL
766 kg
MAXIMUM POWER REQUIREMENT VA 1,500
1 phase
PHASED ARRAY FLAW DETECTOR
The OLYMPUS OMNISCAN MX2 is an important part of your inspection solution, and can be combined with other critical components to form a complete inspection system. Olympus offers a complete product range that includes phased array probes, scanners, analysis software, and accessories, all of which are integrated and packaged into rapidly deployable, application-specific solutions.
The OLYMPUS OMNISCAN MX2 typical Application is Weld Inspection. These phased array systems, which are certified for tube inspection in compliance with ASME, API, and other code criteria, offer superior inspection speed and detection, and facilitate interpretation of indications.
The OLYMPUS OMNISCAN MX2 is compatible with standard industry inspection codes, including, but not limited to: ASME Section V Article 4, All ASME phased array code cases, ASTM E2700-09, ASTM E2491-06, AWS, API 1104 and API RP2X, CEN EN 583-6, BSI BS7706 … and more.
The OLYMPUS OMNISCAN MX2 works with the following probes: Standard Phased Array Probe, 5 MHz Linear Array, 16 Elements, 9.6×10 mm Total Active Aperture, 0.60 mm Pitch, 10 mm Elevation; Standard Phased Array Probe, 1 O MHz Linear Array, 32 Elements, 9.9×7 mm Total Active Aperture, 0.31 mm Pitch, 7 mm Elevation; Standard wedge for phased-array probe A 1O, normal scan, 0-degree longitudinal wave, plain wedge; Standard wedge for phased-array probe A10, normal scan, 55-degree shear wave, plain wedge.
MODEL
OLYMPUS OMNISCAN MX2
OVERALL DIMENSIONS (W X H X D)
325 mm x 235 mm x 130 mm
WEIGHT
5 kg including module and one battery
STORAGE DEVICES
SDHC card, most standard USB storage devices, or fast Ethernet
DATA FILE SIZE
300 MB
USB PORTS
3
SPEAKER OUT
Yes
VIDEO OUTPUT
Video out (SVGA)
ETHERNET
10/100 Mbps
ENCODER
2-axis encoder line (quadrature, up, down, or clock/direction)
DIGITAL INPUT
4 digital TTL inputs, 5 V
DIGITAL OUTPUT
4 digital TTL outputs, 5 V, 15 mA
ACQUISITION ON/OFF SWITCH
Remote acquisition enabled TTL, 5 V
POWER OUTPUT LINE
5 V, 500 mA power output line (short-circuit protected)
ALARMS
3 TTL, 5 V, 15 mA
ANALOG OUTPUT
2 analog outputs (12 bits) ±5 V in 10 kΩ
PACE INPUT
5 V TTL pace input
DISPLAY SIZE
26.4 cm (10.4 in.) (diagonal)
DISPLAY RESOLUTION
800 pixels x 600 pixels
DISPLAY BRIGHTNESS
700 cd/m²
DISPLAY NUMBER OF COLORS
16 million
DISPLAY TYPE
TFT LCD
BATTERY TYPE
Smart Li-ion battery
NUMBER OF BATTERIES
1 or 2 (battery c
3D COORDINATE MEASURING SYSTEM AND SHAPE SURVEY FOR REVERSE ENGINEERING
The CREAFORM HANDYPROBE C-TRACK 780 arm-free probing system generates high-accuracy measurements (accuracy of up to 22 µm), and outperforms traditional portable Coordinate Measuring Machine (CMM) on the shop floor. The CREAFORM HandyPROBE portable CMM is currently used on the production lines of major players from the automotive, aerospace and manufacturing industries.
The CREAFORM HANDYPROBE C-TRACK 780 is: insensitive to changes in the environment (vibrations, part displacement, set-up or CMM instability have no impact); highly efficient at measuring parts that can’t be moved to a granite or cast iron table; ideal for geometric and surface quality control, it offers scanning capabilities when paired with a MetraSCAN 3D scanner; Part size range: 1-3 meters, any type of materials; Extendable measurement range up to 10 m; Truly portable and wireless.
The CREAFORM METRASCAN 210 offers increased measurement speed with equal accuracy. Its increased stand-off and depth of field make for enhanced scanning flexibility. It is ideal for large surface metrology and large-scale reverse engineering.
The software METROLOG X4 EVO (PACK OPTIC ARM GEOSURF ADVANCED) is the ideal software for a real performance accelerator for 3D measuring devices. This software is able to import huge and complex CAD models for direct analysis of measurement data to nominal CAD data, “live-scan” and/or import huge point cloud data files with no deterioration in processing speed and significantly reduce conversion and projection time while using large data sets.
MODEL
REAFORM HANDYPROBE C-TRACK 780
ACCURACY
Up to 0.025 mm
SINGLE POINT REPEATABILITY VOLUMETRIC
0.050 mm in 3.80 m³
ACCURACY MEASUREMENT SPEED
0.055 mm in 7.80 m³
WEIGHT
0.080 mm in 3.80 m³
DIMENSIONS
0.085 mm in 7.80 m³
OPERATING TEMPERATURE RANGE
30 Hz
OPERATING HUMIDITY RANGE
5,5 kg (12 lbs.)
CERTIFICATIONS
1035 x 169 x 140 mm (40.8 x 6.6 x 5.5 in.)
5–40 °C (41-104 °F)
10–90 %
EN 301 489-1, EN 301 489-3, EN 300 220-1
MODEL
CREAFORM HANDYPROBE C-TRACK 780
WEIGHT
1.85 kg (4 lbs)
DIMENSIONS
282 x 250 x 282 mm (11 x 9.8 x 11 in.)
MEASUREMENT RATE
36,000 measures /sec.
VOLUMETRIC ACCURACY (WITH C-TRACK 780)
0.085 mm
RESOLUTION
0.1 mm (0.004 in.)
STAND-OFF DISTANCE
300 mm (12 in.)
DEPTH-OF-FIELD
± 100 mm
LASER CROSS AREA
210 mm x 210 mm (8.2 x 8.2 in.)
OPERATING TEMPERATURE RANGE
5-40 °C (41-104 °F)
OPERATING HUMIDITY RANGE
10-90%
CERTIFICATIONS
EN 301 489-1, EN 301 489-3, EN 300 220-1
SERVICES FOR THE CLUSTER OF NATURAL PRODUCTS
R&D SOLUTION FOR SPRAY DRYING
The Mini Spray Dryer B-290 advanced BUCHI is designed to visualize the Spray Drying process for wide range of applications in various fields such as pharma, materials, chemistry, food, feed, beverages, etc. It allows working with acids, organic solvents or mixtures of aqueous and organic solvents safely in combination with the Inert Loop B-295 and the Dehumidifier B-296.
The Inert Loop is the perfect accessory to enable the Mini Spray Dryer B-290 to handle organic solvents safely. Furthermore, it conserves resources and environment due to its functional principle.
The Dehumidifier B-296 is the ideal accessory to condition the drying air or to work continuously with water and organic solvent mixtures. It ensures process stability and performance.
MODEL
MINI SPRAY DRYER B-290 ADVANCED BUCHI
POWER CONSUMPTION
max. 2900 W
CONNECTION VOLTAGE
200-230 V ± 10 %
FREQUENCY
50/60 Hz
EVAPORATING CAPACITY
1.0 l/h H2O, higher for organic solvents
AIRFLOW
max. of 35 m³/h
MOTOR CONTROL
Frequency converter
MAX. TEMPERATURE INPUT
220 °C
HEATING CAPACITY
2300 W
HEATING CONTROL
PT-100, fuzzy logic, control accuracy ± 3 °C
INTERFACE
Serial port RS-232 for all parameters
SPRAY GAS
Compressed air or nitrogen / 200 – 800 l/h; 5 – 8 bar
NOZZLE TIP
0.7 mm standard, other sizes 1.4 and 2.0 mm available
DIAMETER
1 – 25 µm
POSSIBLE PARTICLE DIAMETER RANGE
1.0 – 1.5 sec.
MEAN RESIDENCE TIME
2
POLLUTION DEGREE
II
INSTALLATION CATEGORY
65 x 110 x 70 cm
DIMENSIONS (W X H X D)
46 kg
WEIGHT
MODEL
INERT LOOP B-295 BUCHI
POWER CONSUMPTION
max. 1400 W
CONNECTION VOLTAGE
200-230 V ± 10 %
FREQUENCY
50/60 Hz
MIN. OUTLET TEMPERATURE
Down to – 20°C
RATE OF COOLING
800 W at -10 °C
DIMENSIONS (W X H X D)
60 x 70 x 84.5 cm
WEIGHT
88 kg
MODEL
DEHUMIDIFIER B-296 BUCHI
POWER CONSUMPTION
max. 700 W
CONNECTION VOLTAGE
200/230 V ± 10 %
FREQUENCY
50/60 Hz
MIN. OUTLET TEMPERATURE
0°C
RATE OF COOLING
600 W at 0 °C
DIMENSIONS (W X H X D)
35 x 40 x 60 cm
WEIGHT
36 kg
PHASED ARRAY FLAW DETECTOR
The MALVERN MASTERSIZER 3000 is the latest generation of the world’s most widespread particle sizing instrument, used by many thousands of companies and research institutes across a wide range of industries.
The MALVERN MASTERSIZER 3000 has a new optical core design and delivers fast measurement times for high sample throughput and a measurement size range from 10nm to 3.5mm. The MALVERN MASTERSIZER 3000 uses the technique of laser diffraction to measure particle size. Sample dispersion is controlled by a range of wet and dry dispersion units (Medium sample volume – HYDRO MV). This ensure the particles are delivered to the measurement area of the optical bench at the correct concentration and in a suitable, stable state of dispersion to make accurate and reliable particle size measurements.
MODEL
OLYMPUS OMNISCAN MX2
MATERIALS
Suspensions, emulsions, dry powders
DATA ACQUISITION RATE
10kHz
TYPICAL MEASUREMENT TIME
<10 sec
RED LIGHT SOURCE
Max. 4mW He-Ne, 632.8nm
BLUE LIGHT SOURCE
Nominal 10mW LED, 470nm
LENS ARRANGEMENT
Reverse Fourier (convergent beam)
EFFECTIVE FOCAL LENGTH
300mm
ARRANGEMENT
Log-spaced array
ANGULAR RANGE
0.015 – 144 degrees
ALIGNMENT
Automatic
SIZE RANGE
0.01 – 3500µm (sample preparation dependent)
NUMBER OF SIZE CLASSES
100 (user adjustable)
ACCURACY
Better than 1%
REPEATABILITY
Better than 0.5% variation
REPRODUCIBILITY
Better than 1% variation
SOFTWARE
21 CFR part 11
LASER CLASS
Class 1
OPTICS DIMENSIONS
690mm x 300mm x 450mm (L x W x H)
SUPPLY VOLTAGE
100/240v, 50/60hz
PRODUCT STORAGE TEMPERATURE
-20 °C to +50 °C
OPERATIONAL TEMPERATURE RANGE
+5 °C to +40 °C
PHASED ARRAY FLAW DETECTOR
Bandelin Sonorex Super RK100(H) is a professional ultrasonic cleaner, working with heating (RK100H) and 320 Watt ultrasonic power. Stainless steel tank with 3 litre capacity. Internal tank dimensions: 240 x 140 x 100 mm.

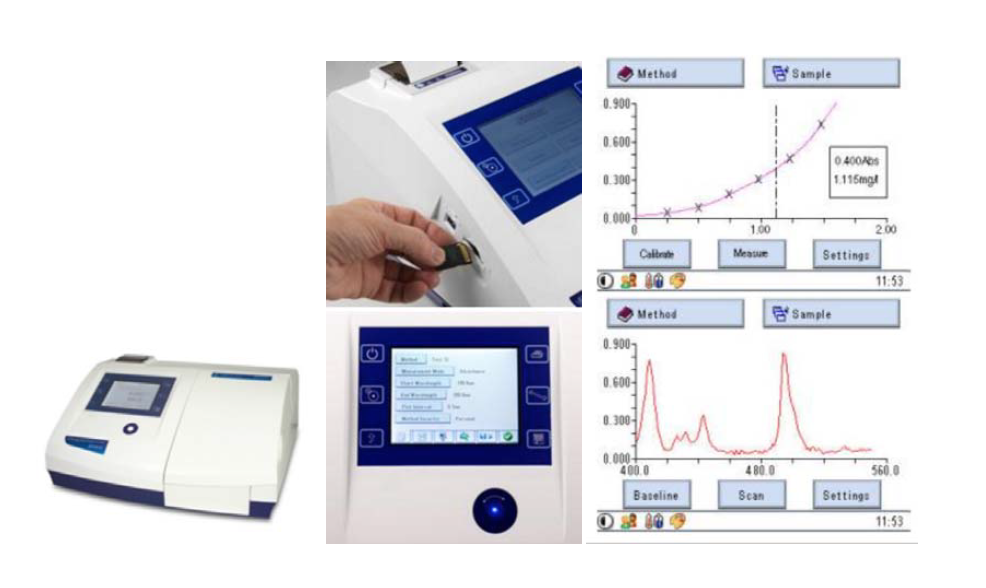

VISIBLE AND UV/VISIBLE SCANNING SPECTROPHOTOMETER
JENWAY 6705 SPECTROPHOTOMETER has modes for photometrics, spectrum scanning, multi-wavelength analysis, kinetics and quantitation, giving direct concentration results against single or multi-point calibrations. With extensive post measurement tools to ensure results are presented exactly to each user’s requirements JENWAY 6705 SPECTROPHOTOMETER also offers significant advances in data portability. Together, the touch screen and colour display give the fastest, most flexible instrument interface possible. Where fine cursor control is required, using the QWheel™ makes the task easy and precise.
MODEL
JENWAY 6705 SPECTROPHOTOMETER
LIGHT SOURCE
Xenon
OPTICS
Sealed, MgF Coated, Split Beam
SPECTRAL BANDWIDTH
4nm
STRAY LIGHT
0.05%T at 220nm
WAVELENGTH RANGE (NM)
190 to 1100
WAVELENGTH RESOLUTION (NM)
0.1
WAVELENGTH ACCURACY (NM)
±1.0nm
WAVELENGTH REPEATABILITY (NM)
±0.2nm
PHOTOMETRIC RANGES
0.300 to 3.000A & 0 to 199.9%T
PHOTOMETRIC RESOLUTION
0.001A & 0.1%T
PHOTOMETRIC ACCURACY
±0.005 at 1A
PHOTOMETRIC STABILITY
<0.001A per Hour
CONCENTRATION RANGE
Up to 99999
NO OF STANDARDS
20 with up to 5 replicates of each
CURVE FIT ALGORITHMS
Linear, Quadratic and Cubic Functions
MULTI WAVELENGTH DATA POINTS
Up to 4 Wavelengths
CALCULATIONS
Difference and ratio
KINETICS TIME LIMITS
0 to 9999 Secs
KINETICS CALIBRATION
Standard or factor
SCAN SPEED
1500mm/minute at 0.1nm data steps
POST SCAN ANALYSIS
Peak/Valley pick, Area, Zoom, Wavelength Table, Overlays, Derivatives, Smoothing
CONFIGURATION
Secure Multi-User or Free access
NO OF USERS
10 + Supervisor
NO
ROTARY EVAPORATOR WITH VACUM PUMP
The rotary evaporator HEIDOLPH – HEI-VAP ADVANTAGE HL GLASSWARE G3 VERTICAL is a device normally used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporators are also used in molecular cooking for the preparation of distillates and extracts. The rotary evaporator HEIDOLPH – HEI-VAP ADVANTAGE HL GLASSWARE G3 VERTICAL includes leading safety standards and features for superior ease of use and is available in hand lift.
MODEL
HEIDOLPH – HEI-VAP ADVANTAGE HL GLASSWARE G3 VERTICAL
LIFT TYPE
hand lift
HEIGHT ADJUSTMENT SPEED
manual
HEIGHT ADJUSTMENT (MM)
155
ROTATION SPEED (RPM)
20 – 280
ROTATION SPEED SETTING
3.5″ LCD display
HEATING CAPACITY (W)
1.300
TEMP. RANGE HEATING BATH (°C)
20 – 210
TEMPERATURE ACCURACY BATH (°C)
±1
OVERHEAT PROTECTION BATH (°C)
cut-off at 5 °C over set temp. via separate PT 1000
BATH TEMPERATURE SETTING
3.5″ LCD display
HEATING BATH TEMPERATURE CONTROL
electronic/digital
SECONDARY OVERTEMP. CUT-OFF (°C)
250
MATERIAL HEATING BATH
stainless steel AISI 316L
DIAMETER HEATING BATH (MM)
255
VOLUME HEATING BATH (L)
4.5
DISPLAY VAPOUR TEMPERATURE
yes
REQUIRED ACCESSORIES
vapour temperature sensor
INTEGRATED VACUUM CONTROLLER
No
TIMER
yes
VACUUM PROGRAM SETPRESSURE**
no
VACUUM PROGRAM AUTOEASY**
yes
VACUUM PROGRAM AUTOACCURATE**
no
REQUIRES SENSOR
noNo / yes / no / yesno
REMOTE CONTROL FUNCTION
1400
LIFT / START ROT. / START VACU. / START
16
HEATING BATH
395 x 490 x 430
PROGRAMMABLE RAMPS
0 – 40 at 80 %, rel. humidity:8.5 / 5.8 / 3.5 / 1.2
POWER SUPPLY (W)
1200
WEIGHT (W/O GLASS ASSEMBLY) (KC)
230 / 50/60
SIZE (L X W X H) (MM)
–
OPERATION CONDITIONS (°C)
–
RATE OF EVAPORATION* (L/H):
–
TOLUENE / ACETONE / ETHANOL / WATER
–
CONDENSING SURFACE (CM2)
–
SUPPLY VOLTAGE *** (V/HZ)
–
The vacuum pump ROTAVAC VALVE TEC is a two-stage diaphragm vacuum pump made of Chemical-resistant material, Recommended for solvents with low or medium boiling points. The vacuum is controlled manually and presents the following characteristics.
MODEL
ROTAVAC VALVE TEC
SUCTION CAPACITY
0.75 m3/h
ACHIEVES AN ULTIMATE VACUUM OF
12 mbar
CAN BE COMBINED WITH A CONDENSER
yes
POWER INPUT:
80 W
WEIGHT:
6.0 kg
DIMENSIONS (WITHOUT CONDENSER):
L145 / W315 / H169 mm
ABSORBANCE MICROPLATE READER
The microplate reader BIOTEK ELx80 is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory. It is an ideal solution for many microplate based biological assays. The ELx800 can be controlled by Gen5 software, expanding the reader’s capabilities to include kinetics and well area scanning measurements. Gen5 offers unsurpassed data reduction capability as well as customizable data output options.
MODEL
BIOTEK ELx80
DETECTION MODES
Absorbance
READ METHODS
End point, kinetic and area scanning under computer control
MICROPLATE TYPES
6- to 384-well plates, 60/72/96-well Terasaki plates (NB option)
SOFTWARE
Gen5 Data Analysis Software optional
ONBOARD SOFTWARE
55 user-programmable protocols
LIGHT SOURCE
Tungsten AND halogen
WAVELENGTH SELECTION
Filters
WAVELENGTH RANGE
400 to 750 nm, 340 to 750 nm (UV option)
BANDWIDTH
10 nm
DYNAMIC RANGE
0 to 3.0 OD
RESOLUTION
0.001 OD
FILTER WHEEL CAPACITY
5 positions
FILTERS SUPPLIED
4 filters (5 with UV option)
OD ACCURACY
<1% at 2.0 OD
OD LINEARITY
<1% at 2.0 OD, < 3% at 3.0 OD
OD REPEATABILITY
<0.5% at 2.0 OD
READING SPEED
96 wells: 30 seconds
POWER
100 – 240 Volts AC, 50/60 Hz.
DIMENSIONS
15″W x 16.5″D x 7″H (38.1 x 41.9 x 17.8 cm)
WEIGHT
18.5 lbs (8 kg)
COMBINED SYSTEM FOR ULTRA PURE WATER AND DEIONIZED
The Labconco WATERPRO PS HPLC/UF HYBRID SYSTEM WITH DISPENSING GUN is a Polishing Stations deliver Type I, 18.2 megohm-cm water from the dispensing valve or optional dispensing gun at a typical rate of 1.8 liter per minute depending on feed water flow rate and pressure, and installed purification modules. The control panel includes a timed dispense feature that allows unattended dispensing of pure water without risk of overfilling. The dispenser shuts off automatically once user-set time has elapsed.
Labconco has designed WaterPro PS Stations with the right combinations of purification technologies and this version has also a Polishing Kit.
PREPARATIVE SYSTEM FOR CHROMATOGRAPHY SEPAR. AND PURIF. OF SAMPLES
The knauer AZURA PREPARATIVE HPLC SYSTEM is a complete binary high pressure gradient (HPG) HPLC system for the purification of samples in the laboratory scale. The AZURA Preparative HPLC system is designed and optimized for the purification of milligram to gram samples. The system proposal consists of two preparative HPLC pumps, a UV/VIS detector and a freely customizable combination module.
The knauer AZURA P 2.1L PUMP covers a wide flow rate range and pressure capabilities. In the current setup, it supports max. pressures up to 225 bar at flow rates up to 100 ml/min (200 bar from 150 ‐ 250 ml/min). The integrated automatic recognition of the pump head with RFID technology allows fast adaptions of the pump for various applications. The HPG setup enables the precise formation of binary gradients. Besides, ternary and quaternary gradients are accessible by integration of additional preparative pumps.
C18 PREPARATIVE COLUMN CHROMATOGRAPHY (SILICA)
Based on an ultra pure spherical silica gel, knauer EUROSPHER II is a high performance column material for analytical, semipreparative and process-scale applications. Eurospher II features very narrow particle and pore size distributions, as well as outstanding mechanical stability. Eurospher II silica gel is perfectly suited to take on routine analyses as well as the most ambitious chromatography tasks.
The new knauer EUROSPHER II C18 generation possesses all of the excellent properties a new generation stationary phase can offer and can nearly solve every separation problem. The C18 modification is most suitable for acidic, basic and neutral analytes in reversed phase mode (sulphonamides; anabolic steroids; anti-psychotics; beta blocker; Sudan dyes; phenols, preservatives etc.).
MODEL
KNAUER EUROSPHERE II C18
MODIFICATION
C18
SPECIAL CHARACTERISTICS
endcapped
PORE SIZE
100 Å
PARTICLE SIZE
20-45 µm
LENGTH
250 mm
INNER DIAMETER
30 mm
DEEP-FREEZING CHAMBER
The Arctiko ULUF 450 -86°C range is a deep freezing chamber, striving for excellence in ultra low temperature freezing. All features such as alarms and data logging functions are always included. The ULUF -86°C series is produced with the true and original single compressor technology.
MODEL
ARCTIKO ULUF 450 DAI 1408
DIMENSIONS EXTERIOR WXDXH (MM):
720x885x2089
CAPACITY (L):
413
DIMENSIONS INTERIOR WXDXH (MM):
480x608x1415
INSULATION (MM):
120
TEMPERATURE RANGE (°C):
-86 / -40
MAX. AMBIENT TEMPERATURE (°C):
25
POWER SUPPLY (V):
230
FREQUENCY (HZ):
50/60
POWER CONSUMPTION (KWH/24H):
14,9
LABORATORY CENTRIFUGE HIGH CAPACTY BENCH TOP
The Centurion Scientific BENCHTOP CENTRIFUGES K243 delivers efficient sample processing in clinical protocols, cell culture applications, microplate processing and a variety of separation needs.
The Centurion Scientific BENCHTOP CENTRIFUGES K243 is available with Centurion Scientific SWING OUT ROTORS BRK5553.
MODEL
CENTURION SCIENTIFIC BENCHTOP CENTRIFUGES K243
SPEED
500-15000 Rpm
RCF MAX
22,000 G
TIMER
0-9999 Mins & hold (1 sec steps)
DIMENSIONS
HWD 375 x 600 x 630mm
WEIGHT
63.5 Kg (without rotor)
POWER
750 W
MEMORY
108 programs
ACCEL RATES
10
DECEL RATES
10
MODEL
CENTURION SCIENTIFIC BENCHTOP CENTRIFUGES K243
ROTOR TYPE
4 x 750ml
TUBE SIZE MAX
98 x 170mm
MINIMUM SPEED
500 Rpm
MAXIMUM SPEED
4,000 Rpm
MAXIMUM RCF (G)
3600
RADIUS MAX CMS
20.15
SAMPLE TUBE ANGLE
0 °
ACCELERATION TIME (SECS)
45
DECELERATION TIME (SECS)
45
AUTOCLEAVEABLE (FREQUENCY)
121 °C
LABORATORY FREEZE DRYER
The Zirbus LYOPHILIZERS VACO 10-II-D presents the ultimate technology in freezing and drying foods, pharmaceuticals and technical products.
MODEL
ZIRBUS LYOPHILIZERS VACO 10-II-D
DIMENSIONS OF CONDENSER
Ø 400 x 400 mm
VOLUME
50 liter
TEMPERATURE OF CONDENSER
-80°C
ICE CAPACITY
10kg/24h
MAX. ICE CAPACITY
12 kg
COOLING SYSTEM
two-stage, free of CFC
OUTER DIMENSIONS (WXHXD)
800x1200x650mm
WEIGHT
90 kg
ELECTRICAL CONNECTION
230 V, 50/60 Hz
PRESSURE REACTOR
The Parr REACTOR 4581 is normally used in many branches of chemical technology. Catalytic Hydrogenation with its associated catalyst development and testing is certainly one of the principal applications of these reactors with their excellent three phase mixing designs. Polymer development is another major area of application. Additionally, the vessels have been used extensively in hydrometallurgical applications.
The Parr REACTOR 4581 presents the capacity of 3.75 L and is designed for 3000 psi (200 bar) maximum pressure with a 500 °C maximum working temperature and mounted on movable carts.
MODEL
ARR REACTOR 4581
REACTOR MOUNTING
Cart / Floor Stand
SIZES, ML
3750
MAXIMUM PRESSURE, MAWP
3000 psi (200 bar)
MAXIMUM TEMPERATURE WITH FG FLAT GASKET
500 °C
VESSEL DETAILS:CLOSURE (CAP SCREWS)
Split Ring (16)
VALVES MOUNTED
Head
VALVE CONNECTIONS
1/4″ NPT Female
MAGNETIC STIRRER, MODEL NO.
AI180HC
MAXIMUM TORQUE
60 Inch-Pounds
IMPELLER(S), 6-BLADE (4-BLADE)
2 (3.5″ dia.)
PRESSURE CAGE, SIZE
4.5 inches
RANGE
0-5000 psi (345 bar)
TEMPERATURE MEASUREMENT
Thermowell
COOLING COIL
Included
STYLE
Serpentine
BOTTOM DRAIN VALVE
AI77VB
HEATER STYLE
Ceramic
HEATER POWER, WATTS
2800
STIRRER MOTOR, VARIABLE SPEED
1/2 hp
ELECTRICAL SUPPLY,VOLTS, AC
230
MAXIMUM LOAD, AMPS, 115 / 230
15
VESSEL DIMENSIONS: INSIDE DIAMETER, INCHES
5.5
INSIDE DEPTH, INCHES
9.7
WEIGHT OF MOVEABLE VESSEL, POUNDS
100
WEIGHT OF FIXED VESSEL, POUNDS
120
REACTOR DIMENSIONS :MOVEABLE WIDTH X DEPTH X
Cart: 35 x 18 x 50
HEIGHT, IN.
Floor Stand: 20 x 33 x 75
FIXED WIDTH X DEPTH X HEIGHT, IN.
325
MOVEABLE WEIGHT W/CONTROLLER, POUNDS
345
FIXED WEIGHT W/CONTROLLER, POUNDS

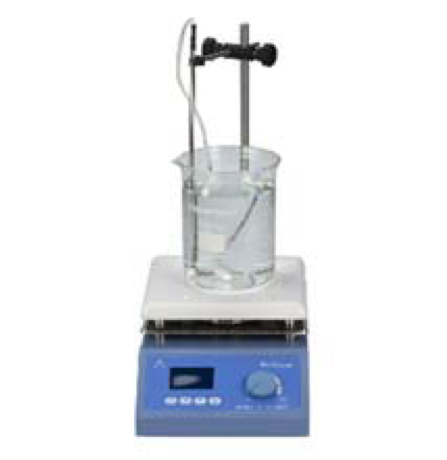

MAGNETIC STIRRING SYSTEM, HEATING AND REFLUXING
The Paralab MAGNETIC STIRRING SYSTEM, HEATING AND REFLUXING works with cooling water for 6 samples atmosphere (adaptable to 6 round bottom flasks with 25 volumes (100 ml and 250 ml).
The Paralab MAGNETIC STIRRING SYSTEM, HEATING AND REFLUXING allows to program the temperature more closely and consistently. With this magnetic stirring system, simultaneous agitation and heat is achieved to keep plating solution homogenous.
MODELPARALAB MAGNETIC STIRRING SYSTEM
MAGNETIC STIRRING up to 1400 rpm
DIGITAL TEMPERATURE CONTROLLER room temperature with ± 0.5 °C accuracy
SERVICES FOR THE CLUSTER OF ENERGY AND ECOMATERIALS
RAPID PCB PROTOTYPING
The LPKF ProtoMat S103 circuit board plotter for producing PCB prototypes and small batches is configured specifically for RF and microwave requirements. The touchless, pneumatic depth limiter further allows delicate surfaces, soft and flexible substrates to be processed. The ProtoMat S103 also carefully depanels irregular shaped flexible circuit boards from larger boards.
The sophisticated Z-axis drive makes the ProtoMat S103 perfect for finishing front panels and housings as well as depth milling microwave PCBs. Even machining populated PCBs is no problem at all.
The ProtoMat S103 is extremely fast and accurate with a spindle speed of 100.000 rpm, a max. travel speed of 150 mm/s and a resolution of 0.5 μm. This ensures the accuracy required for drilling and milling ultra fine structures – especially for high-end applications in the RF- and microwave field.
CircuitPro turns raw CAD data into a dataset for populating the circuit board with soldering paste with no additional expense. The software wizard guides the user through the individual process steps. An internal computation accounts for the pad shape and size to ensure each pad has the right amount of soldering paste. This is further achieved through proven process parameters. The paste is applied with the built-in dispenser, all without having to convert the machine.
MODEL
LPKF PROTOMAT S103
MAX. MATERIAL SIZE AND LAYOUT AREA (X/Y/Z)
229 mm x 305 mm x 35/22 mm (9″ x 12″ x 1.4″ / 0.9″)*
RESOLUTION (X/Y)
0.5 µm (0.02 mil)
REPEATABILITY
± 0.001 mm (± 0.04 mil)
PRECISION OF FRONT-TO-BACK ALIGNMENT
± 0.02 mm (± 0.8 mil)
MILLING SPINDLE
Max. 100,000 rpm, software controlled
TOOL CHANGE
Automatic, 15 positions
MILLING WIDTH ADJUSTMENT
Automatic
TOOL HOLDER
3.175 mm (1/8″), automatic holder
DRILLING SPEED
120 strokes/min
TRAVEL SPEED (X/Y)
Max. 150 mm/s (6″/s)
X/Y-DRIVE
3-phase stepper motor
Z-DRIVE
2-phase stepper motor
DIMENSIONS (W X H X D)
670 mm x 540 mm x 840 mm (26.4″ x 21.3″ x 33″)
WEIGHT
60 kg (132 lbs)90 – 240 V, 50 – 60 Hz, 450 W
OPERATING CONDITIONS
6 bar (87 psi), 100 l/min (3.5 cfm)
POWER SUPPLY
–
COMPRESSED AIR SUPPLY
–
The system is available with the LPKF MiniContac, an electroplating systems for professional through hole platings in PCB prototypes and small batches. This equipment can handle PCBs up to 230 mm x 330 mm (9” x 13”). The system does not require external connections.
MODEL
LPKF MINICONTAC
Carbon
ACTIVATOR
230 mm x 330 mm
MAX. MATERIAL SIZE
200 mm x 290 mm
MAX. LAYOUT SIZE
0.2 mm
HOLE DIAMETER
No limit
NUMBER OF THROUGH-PLATED HOLES
8
MAX. NUMBER OF LAYERS
Less than 10 mΩ
MAX. CONTACT RESISTANCE
Very good
ENVIRONMENTAL COMPATIBILITY
Very good
PROCESSING RELIABILITY
90 -120 min
PROCESSING TIME
FR4, RO3000, RO4000, TMM
BASE MATERIAL TYPES
18 – 25 °C
AMBIENT TEMPERATURE
750 mm x 525 mm x 500 mm
DIMENSIONS (W X H X D)
No
CHEMICAL TINNING
Yes
REVERSE PULSE PLATING
42 kg unfilled; 71 kg filled
WEIGHT
Reflow oven also suitable for lead-free soldering features a large material size and precisely controlled temperature profile.
Pick & Place system for accurately positioning SMT components on PCBs – from small chips to large QFPs.
THERMO MECHANICAL ANALYZER (TMA)
TMA SS 7100 /7300 from HITACHI HIGH TECH SCIENCE has super high sensitivity to determine the dimensional change of any solid, liquid or pasty material sample due to the increase of temperature and load. It can measure a wide range of samples, including thin film and small samples, because the total measurement method has no shape restrictions. Furthermore, the unit can be switched to push, penetration, bending or tension mode by simply exchanging the probe. A full line up of options, including an automatic cooling unit, ensures ease of use and highly accurate measurement.
TMA has the ability to make dynamic studies (DMA), with determination of elasticity, creep, and relaxation. The force applied may be constant, variable, modulated and combined. TMA has motion control by force or displacement.
Applications of thermal analysis: Thermal analysis for ceramic product design and other materials; Thermo constrictive stress measurement of shrink film; Temperature dependence of elastic modulus and broaden the information about thermo physical properties; effective in evaluating physical properties of film and fibre samples.
MODEL
TMA7100
SAMPLE CYLINDER
Quartz, metal
TEMPERATURE RANGE
-170 to 600°C
TMA MEASUREMENT RANGE
±5mm
TMA SENSITIVITY
0.01µm
LOAD RANGE
±5.8N
SCAN RATE
0.01 to 100°C/min
MAXIMUM SAMPLE SIZE
Expansion: φ10x L25mm
Tension: W1xT5xL25mm
SAMPLE LENGTH MEASUREMENT
Automated Measurement
MODEL
TMA7300
SAMPLE CYLINDER
Alumina
TEMPERATURE RANGE
Ambient to 1500°C
TMA MEASUREMENT RANGE
Expansion: φ10x L25mm
TMA SENSITIVITY
–
LOAD RANGE
–
SCAN RATE
–
MAXIMUM SAMPLE SIZE
–
SAMPLE LENGTH MEASUREMENT
–
THERMAL CONDUCTIVITY OF ECO MATERIALS
The Thermal Conductivity Test Tool λ-Meter EP500e (guarded hot plate apparatus) is a tool that uses the guarded hot plate method for the calculation of thermal conductivity, thermal transfer resistance as well as the k-value and U-value respectively of insulation materials, construction materials and other products.
The Thermal Conductivity Test Tool λ-Meter EP500e works in accordance with ISO 8302, EN 12667, ASTM C177, EN 1946-2, EN 12664, EN 12939, DIN 52612 and a high measurement accuracy as required by test authorities. Test are completed within a short measurement time.
The Thermal Conductivity Test Tool λ-Meter EP500e has been approved for use by test institutes or (higher education) institutes as well as for internal factory production control.
According to Appendix A of the European Insulating Standard EN 13162 … EN13171 the product developer has to submit at least 10 test results of thermal conductivity for CE-certification.
MODEL
CONDUCTIVITY TEST TOOL Λ-METER EP500E
MEASUREMENT MODE
single measurement or series of up to 3 single measurements at different arbitrary temperatures
MEASUREMENT TEMPERATURE
Freely selectable in the range of 10 °C up to 40 °C down to -10 and up to 50 °C
TEMPERATURE DIFFERENCE
Freely selectable in the range of 5 K up to 15 K
MEASUREMENT RANGE
R = 0.025…0.250 m²K/W and λ = 0.25…2.0 W/mK
SAMPLE THICKNESS
10 up to 120 mm
SAMPLE DIMENSIONS
optimal: 500 x 500 mm², measurement zone size at minimum
MEASUREMENT ZONE
selectable: 250 x 250 mm², 200 x 200 mm², 150 x 150 mm²
REPRODUCIBILITY
< 0.5 % (mostly < 0.2 %)
MEASUREMENT ACCURACY
< 1.0 % (mostly < 0.7 %)
DIMENSIONS (LENGTH X WIDTH X HEIGHT)
63 x 63 x 88 cm³
MASS
ca. 85 kg
POWER SUPPLY
230 V / 50 Hz
POWER CONSUMPTION
max. 450 W12 air-cooled high performance Peltier modules
COOLING -/HEATING UNIT:
THERMAL PROPERTIES OF ECO MATERIALS
The Hot Disk TPS 2500 S is the flagship instrument in the system portfolio of Hot Disk AB. This general-purpose R&D instrument is designed for precision analysis of thermal transport properties – including thermal conductivity, thermal diffusivity and specific heat capacity. The TPS 2500 S covers an extensive range of materials of various geometries and dimensions, and meets ISO Standard 22007-2.
The standardized TPS technique – today used in more than 600 laboratories – is highly appreciated for its ability to simultaneously determine thermal conductivity, thermal diffusivity and specific heat capacity from a single measurement, with limited emphasis on sample preparation. The operative simplicity of the TPS 2500 S and the performance achieved when using optimally designed Hot Disk sensors, makes this system an ideal, trustworthy tool for tests of solids, liquids, powders, pastes and foams. The trademark high accuracy and precision also makes the instrument suitable for QC testing.
The Hot Disk Thermal Analyser software for the TPS 2500 S system incorporates tools for automated measurements as well as automatic temperature control of external devices. It also incorporates tools for exporting results to 3rd‐party software (MS Excel), for additional
processing or statistical analysis. For precise and automatic temperature readings the PT‐100 temperature sensor is available.
The Hot Disk Thermal Analyser software for the TPS 2500 S system incorporates tools for automated measurements as well as automatic temperature control of external devices. It also incorporates tools for exporting results to 3rd‐party software (MS Excel), for additional processing or statistical analysis. For precise and automatic temperature readings the PT‐100 temperature sensor is available.
MODEL
Hot Disk TPS 2500 S Extended complete
THERMAL CONDUCTIVITY
0.005 to 1800 W/m/K
THERMAL DIFFUSIVITY
0.1 to 1200 mm2/s
SPECIFIC HEAT CAPACITY
Up to 5 MJ/m3K
MEASUREMENT TIME
1 to 1280 seconds
REPRODUCIBILITY
Typically better than 1%
ACCURACY
Better than 5%
TEMPERATURE RANGE
-253 C to 1000 oC
WITH FURNACE
Ambient to 750 oC [1000 oC oxygen free]
PT-100 temperature sensor
INFRA RED THERMOGRAPHY
The FLIR SC7600 is a very flexible camera, with the highest sensitivity, accuracy, spatial resolution and speed. Specifically designed for academic and industrial R&D applications as well as integrators who need to have a very flexible camera. The FLIR SC7600 provides for the first time the CNUC & Hypercal technologies which features NUC free operation and a large dynamic range choice.
The FLIR SC7600 gives complete flexibility in the optical path that needs to be followed for a specific application. This camera is available with small and wide optics.
The FLIR SC7600 is available with ResearchIR Max software to analyse infra‐red thermal measurements.
The FLIR SC7600 enables non‐contact temperature measurement, being useful for many applications, including but not limited to the following: surveying of buildings thermal efficiency, which might include detecting missing insulation in walls & ceilings, as well as identifying other potential areas where heat is being lost; identifying and reporting on potential electrical, mechanical & chemical faults in machinery, hardware, tooling and other infrastructure; aerial thermal surveys over urban areas; identifying necrosis with medical thermography, building draft‐proofing, computer vision systems, assess water stress in plants, research & development, and so on.
MODEL
FLIR SC7600
WAVEBAND
MW
SENSOR TYPE
InSb (FLIR detector for SC7650) / MCT
PIXEL RESOLUTION
640×512
PIXEL PITCH
15µm
SPECTRAL RANGES
1.5 – 5.1 µm for InSb (BB)
NETD MEASUREMENT
<20mK / <25mK
OPTIONAL CAMERA CALIBRATION RANGE
-20°C to 3000C and 50C to 1500oC
DIGITAL FULL FRAME RATE
InSb: 100 Hz full frame up to 3.425 kHz with windowing
INTERFACES DIGITAL DATA OUTPUT
GigE, Camera Link (not with the SC7650E)
COMMAND & CONTROL
GigE, Camera Link (not with the SC7650E)
FPA WINDOWING
Arbitrary Size and Location
FILTER OPTIONS
Fixed motorised 4 Position Filter Wheel. Field replaceable Filters.
AVAILABLE OPTICS
12mm – 44°x 36° (n.a. in SWB) and 100mm – 5.5°x 4.4°
SERVICES FOR THE CLUSTER OF ENVIRONEMENT
AIR QUALITY MEASURING MACHINE / EMISSION OF VOC PARTICLES
The versatile and flexible DANI MASTER GC (GAS CHROMATOGRAPH) is uniquely designed to perform conventional and fast gas chromatographic analyses fulfilling the demands of routine and research analyses over a variety of industries and applications such as environmental, 30 agriculture, food and beverage, flavor and fragrance, petrochemical, and pharmaceuticals among others.
The system can be equipped with an array of inlet systems and a wide selection of detectors, suitable for conventional and Fast GC analyses. The system integrates leading edge technology with total system control delivering outstanding reliability, repeatability, and performance. The most popular GC injector features an outstanding design and thanks to the patented DFC provides excellent precision in split, splitless, and pulsed injection modes of operation. In addition, the post‐injection carrier gas save mode is a valuable cost saving feature. To fulfil the users’ analytical needs a series of liner types are available, including liners suitable for SPME analysis.
The DANI MASTER TD (THERMAL DESORBER) offers superior sensitivity, versatility, and productivity for the extraction of volatile and semi‐volatile compounds from air and solid matrices. The MASTER TD performs an instantaneous heating of the trap through an ingenious built‐in device that assures the transfer of analytes as a narrow band into the GC column. In addition, backflush desorption of the trap further improves the efficiency of analyte transfer and permits the use of multi‐layer traps. The intuitive control through the TD Manager software offers a complete automated solution. The easy and flexible management of all operating parameters and analytical conditions permits unattended analysis of up to 50 samples
The DANI MASTER TD, combined with the DANI MASTER GC, is the right solution for air monitoring (indoor, workplace, and ambient air) and for the analysis of soil, polymers, packaging materials, etc.
The environmental concentrations of BTEX in the ambient air of major cities worldwide are of great concern. Ambient air measurements can be efficiently carried out by the MASTER TD equipped with a trap that selectively retains the target volatiles. The system fulfils productivity requirements and achieves sensitivity at ppb levels meeting specifications given in established U.S. EPA and international methods.
The Micro‐Chamber/ Thermal Extractor from MARKES INJTERNATIONAL is designed to meet the growing demand for fast emissions screening in manufacturing industry and third‐party test labs.
The Micro‐Chamber/ Thermal Extractor from MARKES INJTERNATIONAL offers a uniquely fast and cost‐effective quality control (QC) tool for screening the levels of volatile and semi‐volatile organic chemicals (VOCs and SVOCs) coming out of products and raw materials.
Demand for testing hazardous chemicals released (emitted) by construction products and consumer goods has seen rapid growth over recent years. This is driven by regulatory developments in Europe (Construction Product Directive/Regulation [CPD/R], Regulation, Evaluation, Authorisation and restriction of Chemical [REACH], German and French national laws, etc.), the US (the Ca Air Resources Board [CARB] formaldehyde rule, the international Green Construction Code [IgCC] initiative, etc.) and in the Far East (e.g. Chinese REACH). Some of the latest regulations require both third party certification and in‐house product quality control of emissions for full compliance. Typical sample types include wood‐based products,
plastic goods, insulation materials, electronics, foods, tobacco, decorative products, flooring materials, textiles and cleaning products.
The Micro‐Chamber/ Thermal Extractor from MARKES INJTERNATIONAL is used for both characterising overall emission (odour) profiles and for analysing the type and amount of individual chemicals coming out of each sample material
ENVIRONMENTAL CLIMATE CHAMBER
The environmental climate chamber ACS DM600 has the essential environmental chamber performance and is specifically designed for General Purpose applications where excessively high temperatures or fast ramp rates are not required. They are ideal for climatic tests at steady states, and for use in a wide range of applications, such as tropical tests on pharmaceutical products, and a wide range of tests in the plastics, rubber, paper and semiconductor industries.
The environmental climate chamber ACS DM600 monitoring and management system (MyKratos) runs with mobile and desktop devices. The chamber wireless (WiFi) connection allows operation through various devices, such as tablets and smartphones (compatible with iOS 7 and Android 4.2.1). The operator interface can be remotely accessed also through the chamber connection to the client’s LAN or via GPRS/UMTS (upon activation of a SIM card data).
The environmental climate chamber ACS DM600 is prepared to do cooling tests according to standards: DIN 40046 page 3 test A, IEC 68‐2‐1 test A, BS2011 Part 2 test A, MILD‐STD 810 D Met. 502.2, MIL‐E 5272 Test 4.2.
32 The environmental climate chamber ACS DM600 is prepared to do hot tests according to standards: DIN 40046 page 4 test 3, IEC 68‐2‐2 test B, BS2011 Part 2 test B, MILD‐STD 810 D Met. 501.2, MILD‐STD 883 C Met. 1008.2, MIL‐E 5272 Test 4.1, MILD‐STD 202 E Met. 108 A. The environmental climate chamber ACS DM600 is prepared to do hot / cold tests according to standards: DIN 40046 page 14 test Nb, IEC 68‐2‐14 Nb, MILD‐STD 311 A Part 112.1. The environmental climate chamber ACS DM600 is prepared to do constant climate tests according to standards: DIN 40046, DIN 50014, IEC 68‐2‐3 test Ca, MILD‐STD 202 E Met. 103 B, DIN/IEC 68‐2‐56.
The environmental climate chamber ACS DM600 is prepared to do variable climate tests according to standards: DIN/IEC 68‐2‐30 DB, IEC 68‐2‐38, MILD‐STD 202 E Met. 106 D, MILD‐STD 883 C Met. 1004.4, DIN 40046 page 6 and 31, IEC 68‐2‐4 test D, BS 2011 Part 2.1 Test Da, MILD‐STD 750 B Met. 1021.1, DIN 40046 page 101, DIN 50016, MILD‐STD 311 A Part 105.1, MILD‐STD 810 Met. 507 Proc. 1‐2‐3.
MODEL
CLIMATE CHAMBER ACS DM600
USEFUL CAPACITY (L)
553
INTERNAL DIMENSIONS WIDTH+DEPTH+X HEIGHT (MM)
850x730x892
EXTERNAL DIMENSIONS WIDTH+DEPTH+X HEIGHT (MM)
1124x1768x2049
TEMPERATURE RANGE (°C) BASIC
-40…+180
TEMPERATURE FLUCTUATION (K)
±0.1…±0.3
TEMPERATURE CHANGING HEATING RATE BASIC
4,5K/min
TEMPERATURE CHANGING COOLING RATE BASIC
4,5K/min
HUMIDITY RANGE (%)│T=–3/+94°C)
10…98
TEMPERATURE RANGE FOR CLIMATIC TEST (°C)
10…95
HUMIDITY FLUCTUATION (%)
±1…±3
MAXIMUM THERMAL LOAD (W) 5 BASIC T=+25°C
4500
RATED POWER (KW) BASIC
10.5
RATED CURRENT ABSORPTION (A) BASIC
19
WEIGHT (KG) BASIC
875
SOUND PRESSURE LEVEL DB(A)3 BASIC
61
SUPPLY VOLTAGE (VAC)
400V ±10%/50Hz/3 + N + G
ACCELERATED WEATHERING TESTERS

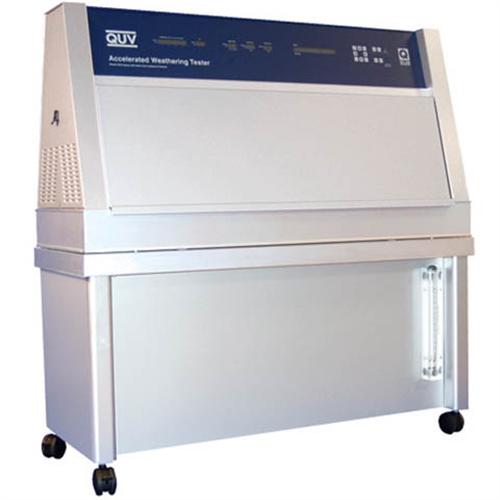

The QUV ACCELERATED WEATHERING TESTER reproduces the damage caused by sunlight, rain and dew. In a few days or weeks, the QUV can reproduce the damage that occurs over months or years outdoors.
The QUV ACCELERATED WEATHERING TESTER tests materials by exposing them to alternating cycles of UV light and moisture at controlled, elevated temperatures. The QUV simulates the effects of sunlight with fluorescent ultraviolet (UV) lamps, and it simulates dew and rain using condensing humidity and/or water spray. Types of damage include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, embrittlement, strength loss and oxidation.
The QUV ACCELERATED WEATHERING TESTER is calibrated with a CR‐10 Calibration Radiometer which is an essential accessory to the QUV’s SOLAR EYE system because it ensures the accuracy of the SOLAR EYE and, ultimately, the QUV test results. One CR‐10 radiometer can calibrate any number of QUVs.
The QUV conforms to a large number of national, international and industry specifications, including but not limited to: ASTM D4799, ISO 11507, ASTM D6662, ISO 4892‐3, ASTM G154, SAE J2020, ASTM D4587, J15 K 5600‐7‐8, EN 927‐6 and AATCC TM186.
MODEL
QUV ACCELERATED WEATHERING TESTER
TEMPERATURE RANGES LIGHT CYCLE TEMP.*
45°C-80°C
CONDENSATION CYCLE TEMP.
40°C-60°C
SPECIMEN CAPACITY STANDARD:
50 Specimens, (75 x 150 mm)
SPECIMEN SUPPORT – SPECIAL IN STAINLESS STEEL
1000x324x300 [mm]
ELECTRICAL:
120/60,14A
WATER
8 liter/day
LAMPS
UVA-340
LAMP LIFE:
1600 hours (avg)
LAMINAR FLUX CHAMBER
The Telstar Bio II Advance series LAMINAR FLUX CHAMBER is a new generation of biological safety cabinets providing a compact design for easy installation within the laboratory. It has also been designed to the highest standards of safety, ergonomics, energy efficiency, reliability and ease of use in its class.
The Bio II Advance series is LAMINAR FLUX CHAMBER provide the market’s most secure safety cabinets for biological products.
The Bio II Advance series LAMINAR FLUX CHAMBER is certified by UNI EN ISO 9001:2000.
MODEL
TELSTAR BIO II ADVANCE 4
EXTERNAL DIMENSIONS, MM
1354x759x1260
INTERNAL DIMENSIONS, MM
1259x605x587
HEIGHT OF FRONT OPENING, MM
200
WEIGHT, KG
200
LAMINAR FLOW SPEED, M/S AND M3/H
0.35 and 882
FRONT ENTRY AIR SPEED / EXTRACTION FLOW RATE, M/S AND M3/H
0.5 / 402
POWER, KW
1.3
POWER SUPPLY , V / HZ
230 / 50-60
LIGHTING LUX
> 1000
SOUND, DB
<58
VIBRATION, MM RMS
< 0.005
